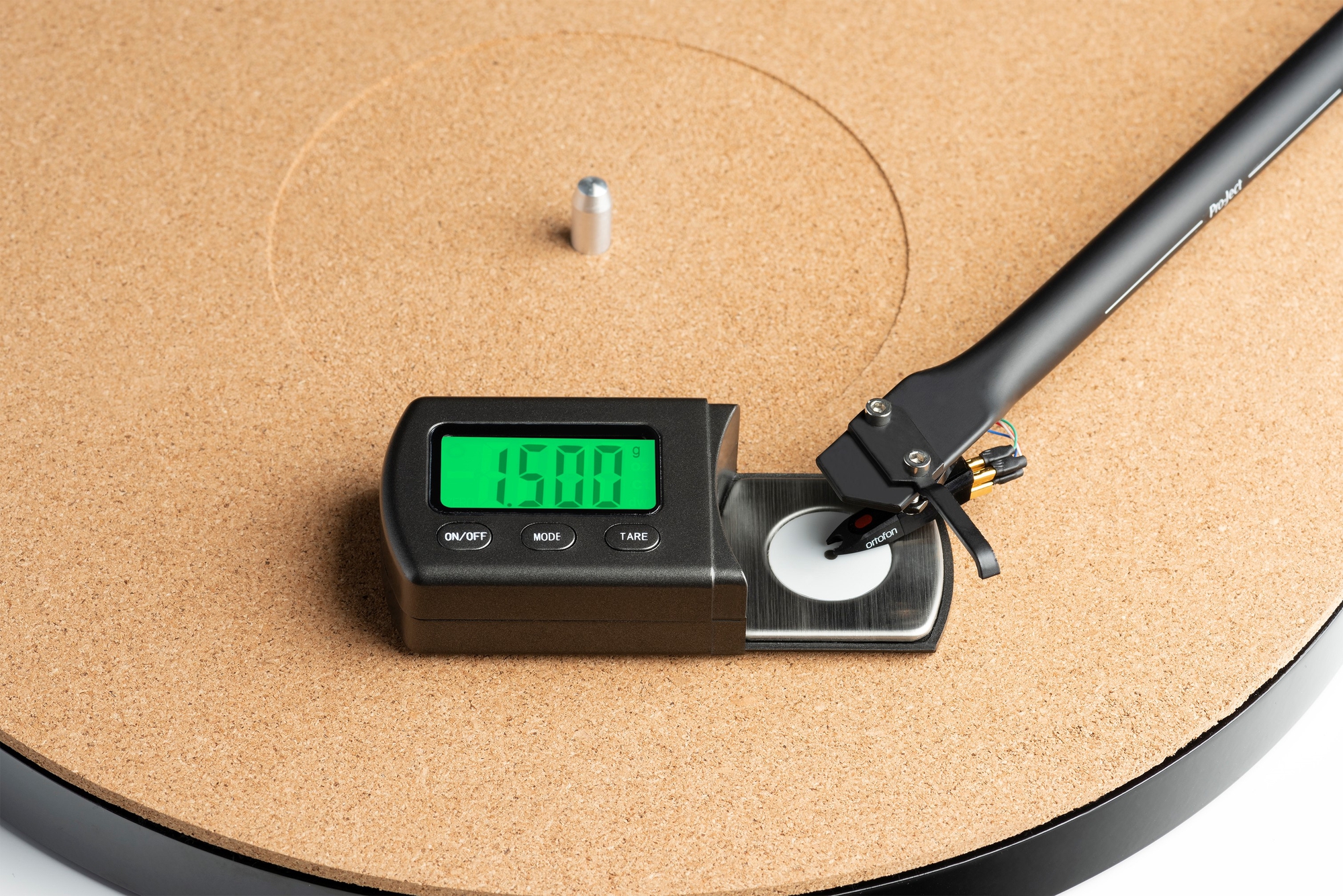

The Measure It E Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus tracking forces up to 5.0 grams in 0.002 gram increments.
Each Measure It E is easily calibrated, simply hold down the "Tare" button to zero the scale. Double check the accuracy of the pressure gauge measurements with the supplied 5g weight.
When in doubt about the actual amount of pressure on the diamond tip of your stylus, check your cartridge manufacturer's stylus pressure recommendations. Now that you are armed with precise information about tracking force, you have the peace of mind in knowing that your stylus tip wear will be significantly reduced.
In the box:
|Capacity||0 - 5g|
|Weighting modes||gram (1g = 10mN), ounce (oz), pennyweight (dwt) & carat (ct)|
|Display||4 digit LCD with backlight|
|Calibration||auto calibration using a 5g weight|
|Auto off||30 seconds off|
|Replacement battery||2 x LR43 (AG12) button cells, 1,5V|
|Operating temperature||+10 - +30° C (50 - 86 degrees Fahrenheit)|
|Dimensions (W x H x D)||96 x 21 x 43mm|
Pro-Ject Measure It E Precision Digital Scale
