Audio-Technica AT-VM95SH/H Headshell Cartridge Kit

$379.00

( / )
Unavailable

Audio-Technica AT-VM95SH/H Headshell Cartridge Kit

LIMITED STOCK.  CALL FOR AVAILABILITIES.

The Audio-Technica AT-VM95SH/H Headshell Cartridge Kit combines precision engineering with elegant design to enhance your vinyl listening experience.

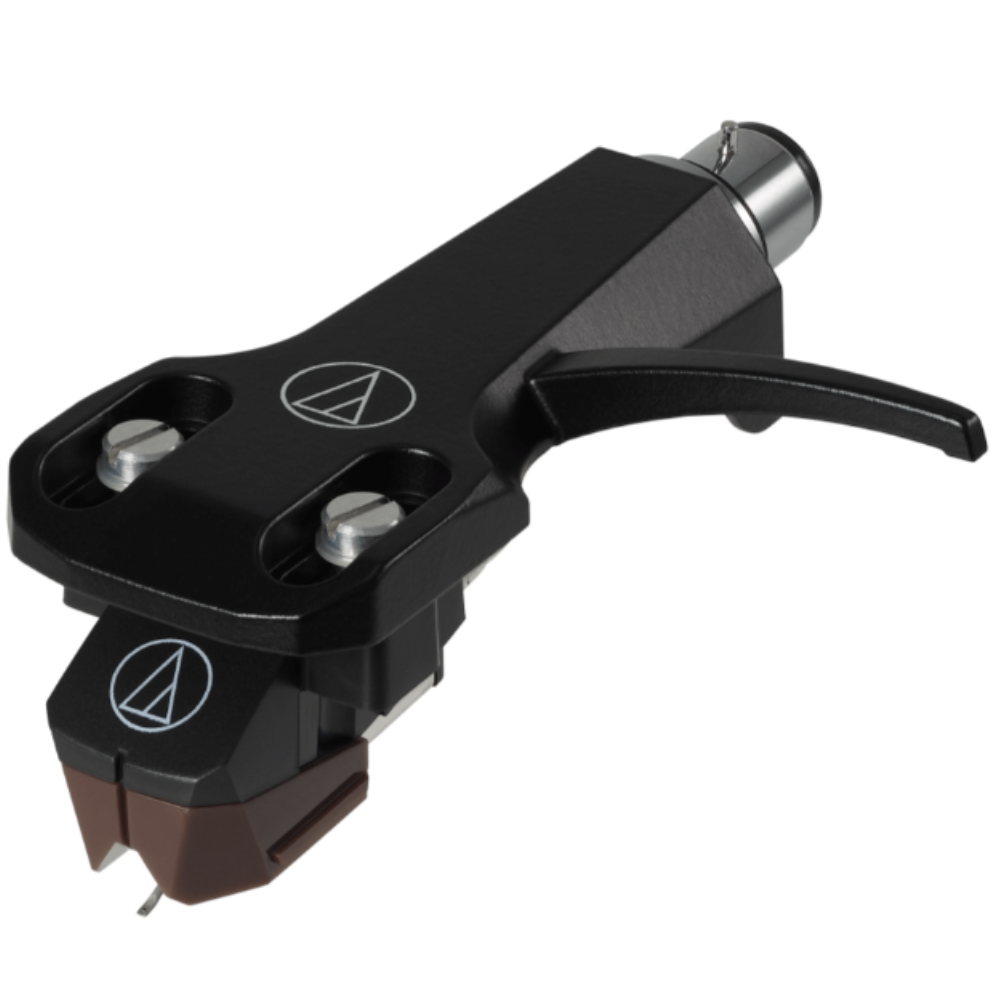

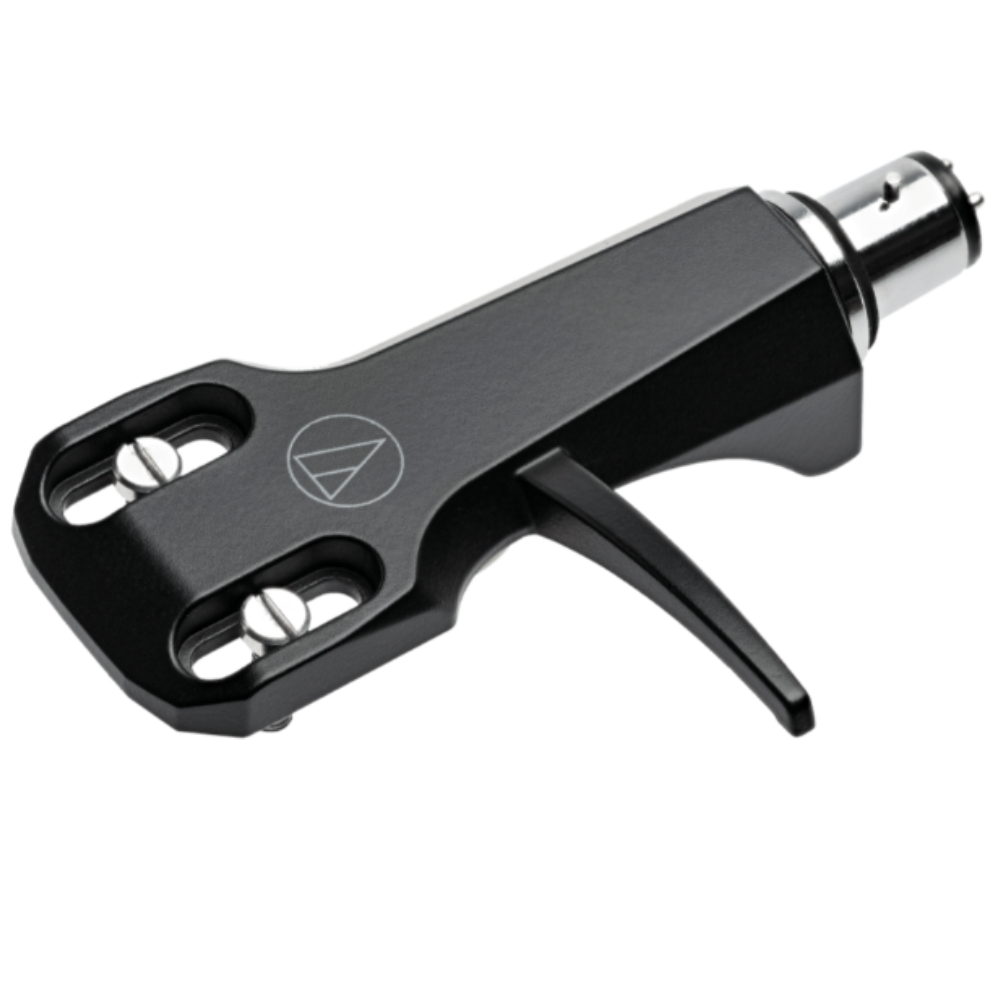

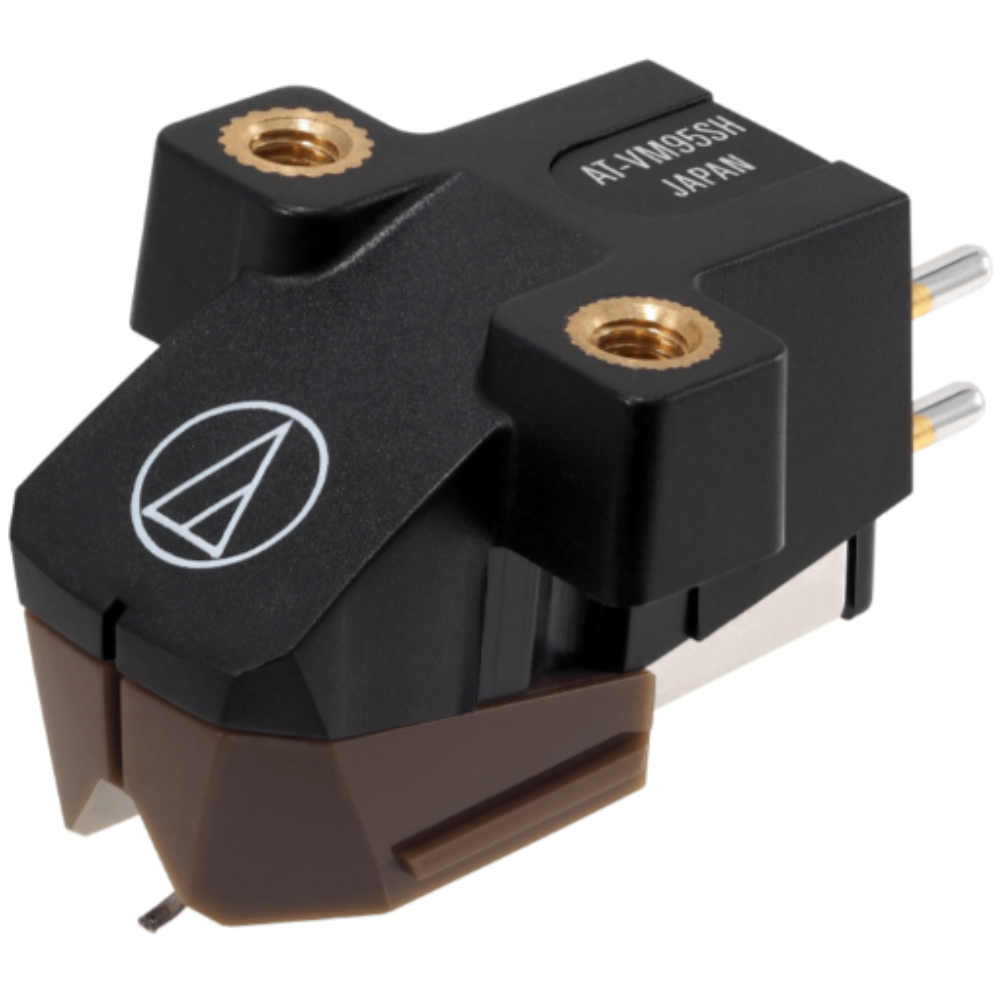

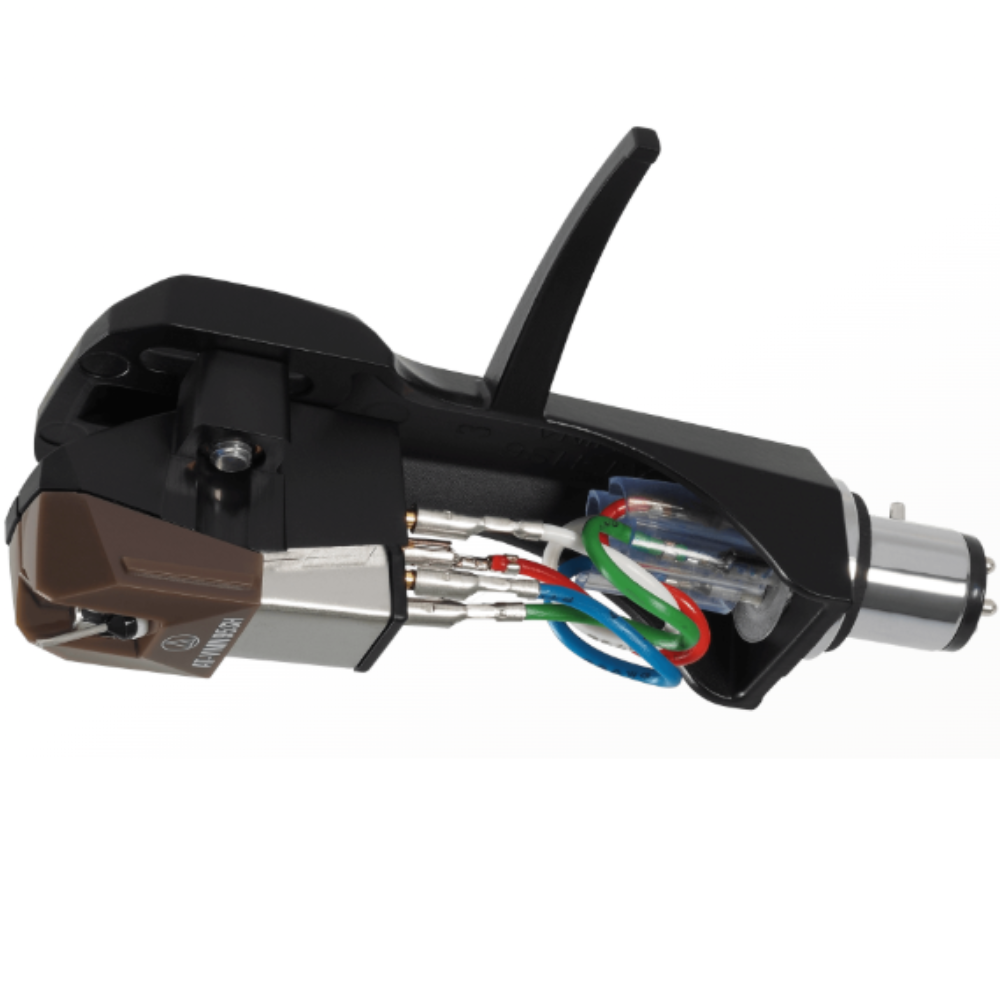

The AT-VM95SH/H combo kit includes the AT-VM95SH dual moving magnet cartridge premounted on the AT-HS6BK headshell.

audio-technica at-vm95sh/h headshell cartridge Kit melbourne hi fi

Specifications

Cartridge & Stylus
Frequency Response 20 - 25,000 Hz
Channel Separation 23 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Nude Square Shank
Recommended Load Impedance 47,000 Ω
Coil Impedance 3.3 kΩ (1 kHz)
DC Resistance 485 Ω
Coil Inductance 550 mH (1 kHz)
Output Voltage 3.5 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape Shibata
Cantilever Aluminium Pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 10 x 10 – 6 cm / dyne (100 Hz)
Mounting 1/2” centres
Dimensions 21.2 × 21.4 × 62.4 ( H x W x D mm)
Recommended Load Capacitance 100-200 pF
Replacement Stylus AT-VMN95SH
Stylus Size 2.7 x 0.26mil
Type VM Stereo Dual Magnet
Weight 15.5 g
Wire Used for Coil T.P. Copper
