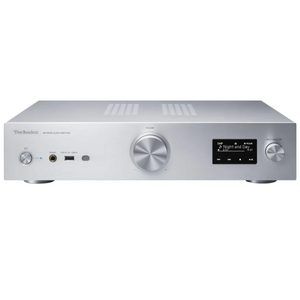

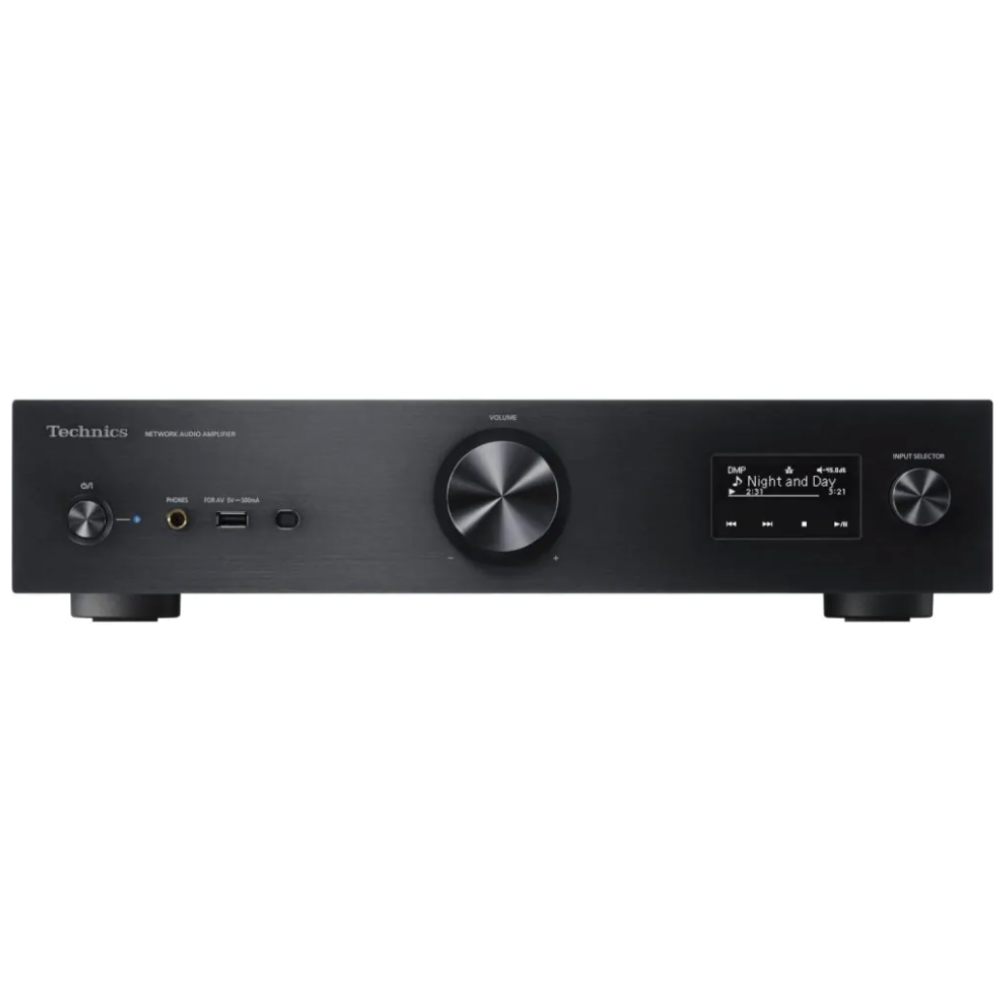

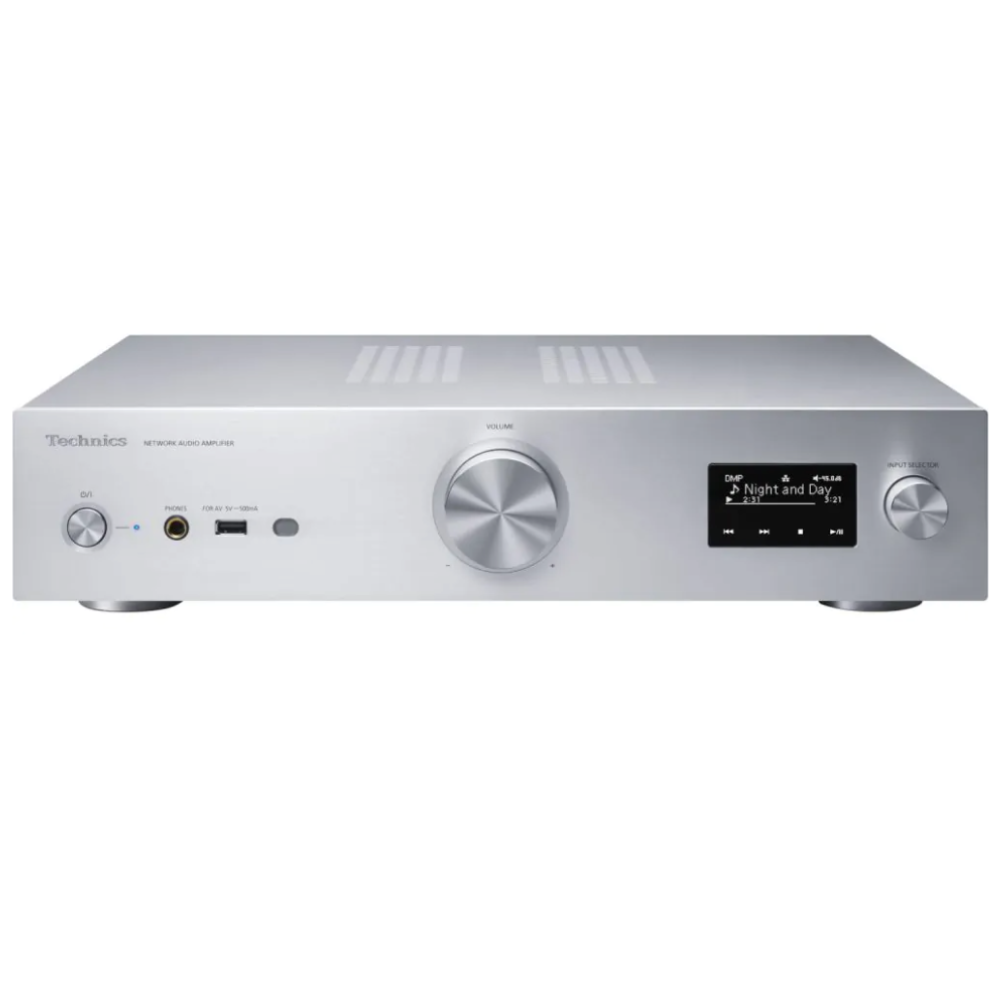

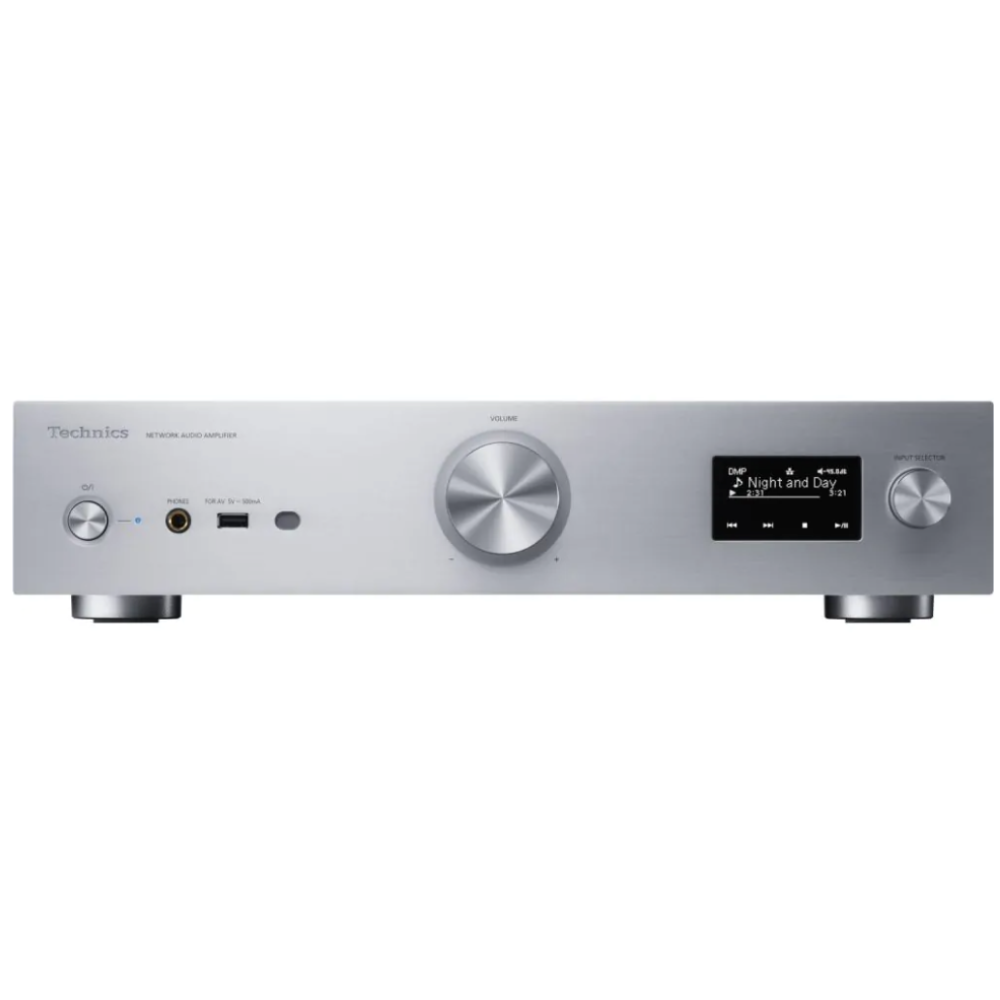

Technics SU-GX70 Grand Class Network Streaming Amplifier

Experience premium audio integration with the Technics SU-GX70 Grand Class Network Streaming Amplifier.

This fully digital amplifier combines advanced JENO Engine technology with Load Adaptive Phase Calibration to deliver exceptional clarity across all your audio sources. Featuring dual power supplies, discrete amp circuits, and HDMI ARC connectivity, the SU-GX70 seamlessly handles video, music, and streaming content.

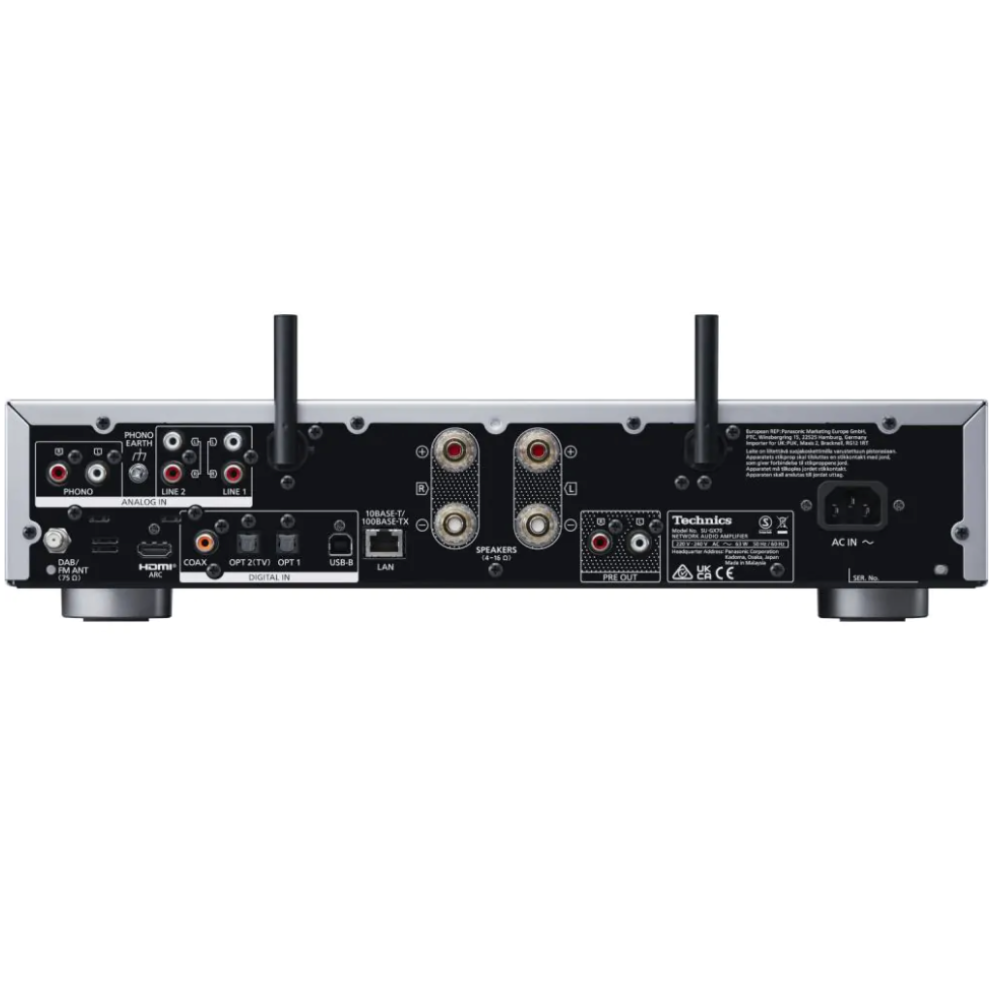

Enjoy wireless playback via Bluetooth, AirPlay2, Spotify Connect, and Google Cast, plus support for high-resolution formats up to 384kHz. With abundant input options including phono, optical, coaxial, and USB, plus DAB+ and FM tuning, this versatile amplifier becomes the centrepiece of your complete home entertainment system.

CALL FOR AVAILABILITIES

The definitive living room audio center that enables seamless enjoyment of video, audio, and music through next-level integration using Technics’ full digital technologies.

Features

Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimisation)

The SU-GX70 uses a fully digital amplifier that incorporates Technics’ renowned digital audio technology. Its digital transmission system processes signals fully digitally in all stages from input to output. Compared to analogue transmission, this system is less susceptible to signal degradation caused by external noise, ensuring more precise signal transmission. Accurate signal processing not only delivers high-resolution digital audio but also maintains the soft texture inherent in analogue recordings.
Further, a JENO Engine has been used in the HDMI ARC (Audio Return Channel), which has been installed in a Technics product for the first time. This helps to reduce any degradation in sound quality caused by jitter during the transmission of digital audio signals (S/PDIF), ensuring unparalleled levels of clarity in TV audio.

Ideal Impulse Response through LAPC (Load Adaptive Phase Calibration)

Speaker impedance changes with each frequency and a power amplifier is required to drive speakers without being affected by the speaker’s characteristics. However, conventional digital amplifiers are connected to speakers through a low-pass filter at the output stage, so they are even more strongly affected by the speaker impedance characteristics. Also, although the amplitude characteristics of conventional amplifiers due to negative feedback were improved, the phase characteristics could not be enhanced.

We thus developed a speaker impedance adaptive optimisation algorithm that performs correction to the ideal impulse response through digital signal processing by measuring the frequency amplitude-phase characteristics of the amplifier with the speakers connected. This technique enables flattening of the frequency characteristics of amplitude and phase, which had previously not been achieved by amplifiers, while also delivering a sound with rich spatial expression.

Twin Power Supply Circuit System

The design of the power supply is extremely critical in audio systems containing amplifiers, digital circuits and other such components. To eliminate any adverse effects on the amplifier, the SU-GX70 is equipped with a dedicated power supply for the power amplifier circuits that is independent from all other circuits. As such, the same electrolytic capacitors installed in high-end models have been used in the dedicated amplifier power supply and the power amplifier components.

The SU-GX70 uses a high-speed switching power supply of approximately 130 kHz. By increasing the switching frequency, noise interference on the music playback bandwidth is reduced. This enables highly responsive power supply for music signals and powerful speaker drive capability.

High-quality Audio through Low-impact HDMI Video Output

For the SU-GX70 to receive audio signals through the HDMI ARC (Audio Return Channel), due to the specifications, video signals must first be output from the SU-GX70. However, the output of these signals can cause unwanted noise.
As such, the video signals are output from the SU-GX70 at a lower rate, and the digital value of the colour of each pixel is set to zero. This ensures low-load operation between the HDMI transmitting/receiving devices, preventing any unwanted noise generation from the video signals. This also reduces any impact on sound quality. Further, transmitting the signals from the TV to the JENO Engine via the shortest possible route minimises any further impact from jitter. This is a mechanism unique to Panasonic/Technics as HDMI licensors.

Pure Amplification Mode
