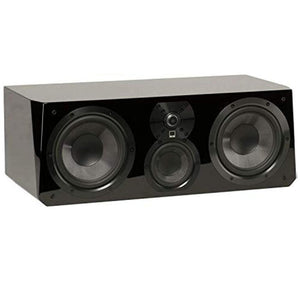

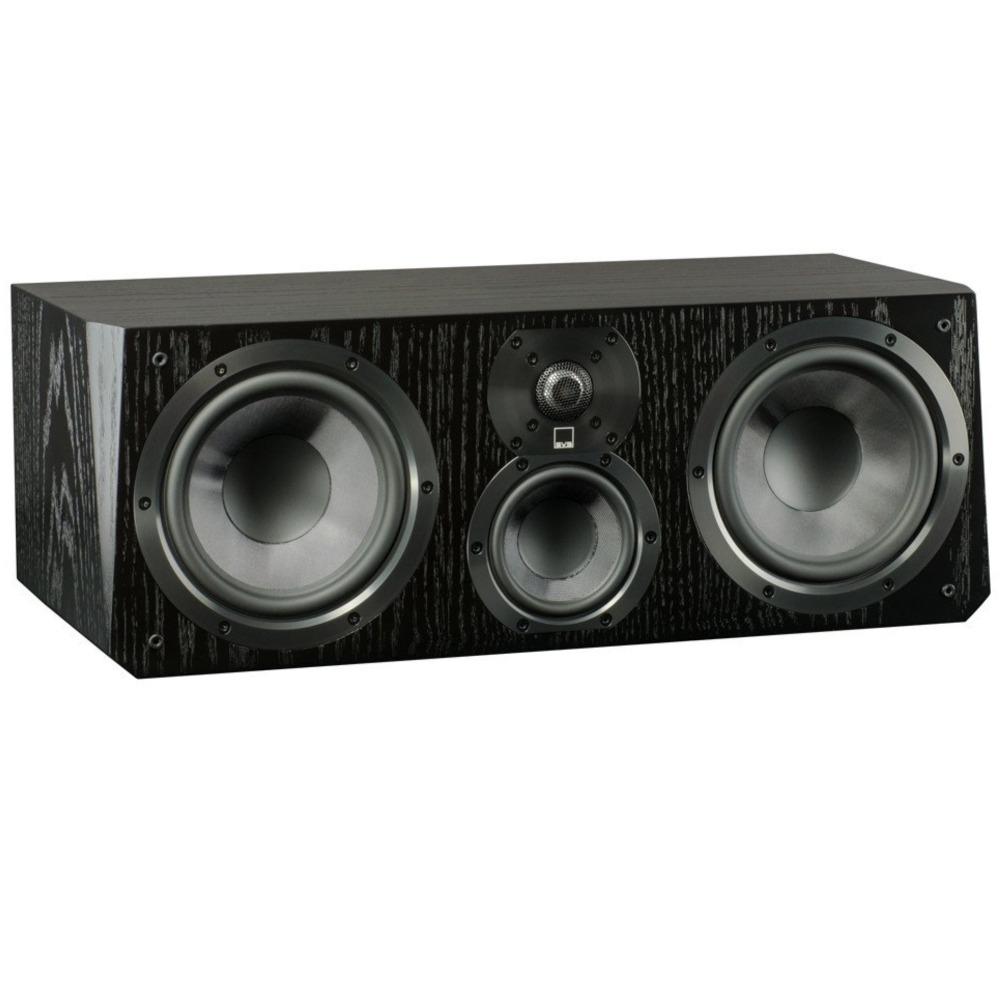

SVS Ultra Centre Speaker

Low stock

The reference 3-way SVS Ultra Center channel speaker reproduces the most demanding movie and music content with depth, clarity and vigor, while serving as the main soundstage anchor and critical sonic bridge between the front left and right speakers in a surround sound home theater. Amazingly detailed and revealing of the finest nuance and textures with excellent low frequency extension, the SVS Ultra Center combines power and precision to outperform much larger and more expensive center channel speakers.

Built without compromise, the SVS Ultra Center speaker features a painstakingly tuned SoundMatch three-way crossover with dual 6.5-inch glass fiber composite woofers and a vertically aligned 1-inch aluminum dome tweeter and 4-inch midrange driver. From the acoustically enhanced cabinet geometry to the high-end components and build quality, the Ultra Center is a star among home theater speakers.

A center channel speaker is often considered the most underrated speaker in a home theater surround sound system because it handles the majority of dialogue, vocals, music and sound that’s coming from right in front of you in a movie, but rarely does a home theater center speaker get the same love as tower or bookshelf speakers. Many speaker manufacturers compromise with a two-way design or thin center channel speaker with flimsy drivers as an afterthought, not SVS. The SVS Ultra Center channel speaker flexes serious sonic muscle and is optimised for horizontal placement and elevating the most challenging movie and music content to reference quality.

Ultra Driver & Tweeter Design

For the all-important midrange where the majority of audio content lives, the SVS Ultra Center speaker features a robust 4-inch composite glass-fiber cone midrange driver with an excellent stiffness to mass ratio for high sensitivity and maintaining pistonic behavior well beyond the pass-band of the driver. The midrange is housed in its own sub-enclosure andvertically aligned with the 1-inch aluminum dome tweeter, which features an FEA-optimized diffuser to ensure broad dispersion for an incredibly wide and convincing soundstage and perfect on- and off-axis frequency response. This means the largest possible “Sweet Spot” so everyone can experience the same stunning clarity. Dual 6.5-inch woofers deliver effortless bass output and power handling capabilities rarely found in a center channel home theater speaker.

Innovative SoundMatch Crossover Design

A three-way crossover design is imperative for a truly stand-out center channel. The Ultra Center speaker features a unique SVS SoundMatch three-way crossover with precisely tuned crossover frequencies and slopes that result in a smooth off-axis response, outstanding phase coherency and a stable, robust soundstage. Premium-grade capacitors, air-core inductors and other high end components ensure pristine signal transmission and utter neutrality.

Frequency Response / Acoustic Data:

• Rated bandwidth: 45 Hz-32 kHz (+/-3 dB).
• Nominal impedance: 8 ohms.
• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
• Recommended amplifier power: 20-225 watts.

Speaker Specs:

• Center Channel Loudspeaker
• Real black oak veneer and piano gloss black finish options

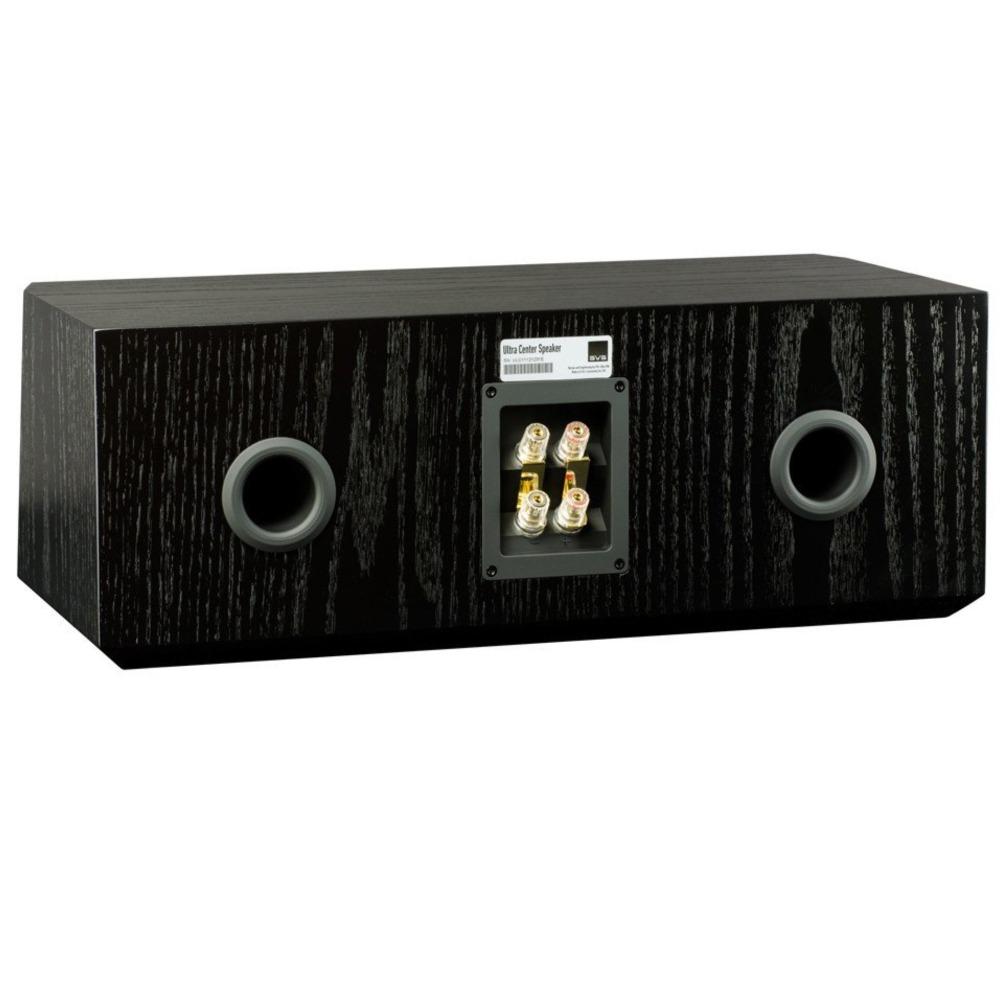

• Dual gold-plated 5-way binding posts
• Dual 1.7" wide-flared rear-firing ports
• Cloth grille with pin/cup retention system
• Elastomer stick-on bumper feet (adds 3mm to height)
• Cabinet Dimensions: 8.2” (H) x 22" (W) x 10.6” (D) (without grille)
• Overall Dimensions: 8.2” (H) x 22” (W) x 10.9” (D) (with grille)
• Shipped Dimensions: 14" (H) x 27" (W) x 15" (D)
• Weight: 31 pounds
• Shipped Weight: 35 pounds

Driver Specs:

1” Aluminum Dome Tweeter:

• Vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering
• FEA-optimized diffuser for airy and unveiled presentation
• Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio

4” Midrange Drivers:

• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
• Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
• Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity
• Vented voice coil former to minimise air compression artefacts at high drive levels

6.5” Woofers:

• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behaviour beyond pass band
• Aluminum shorting rings to reduce gap inductance and lower distortion
• Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity
• Vented voice coil formers to minimise air compression artefacts at high drive levels
